Meet the Pudu CC1: Autonomous Cleaning & Hands‑On STEM for Schools & Facilities

4-in-1: Mopping, vacuuming, scrubbing, sweeping

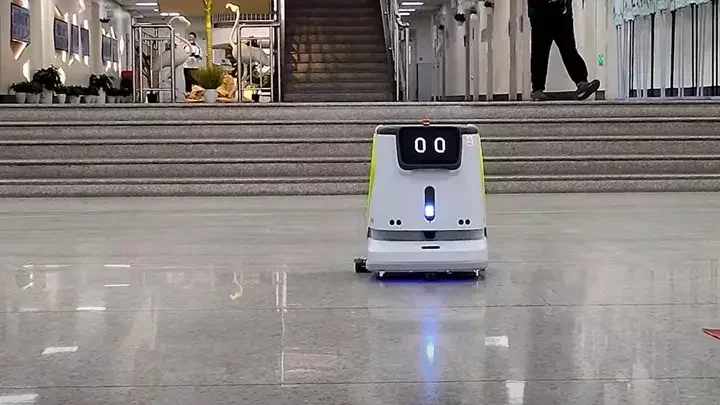

The Pudu CC1 Autonomous Cleaner is a next-generation solution for comprehensive facility cleaning, designed to streamline maintenance with cutting-edge automation. Equipped with intelligent navigation and real-time monitoring, the CC1 delivers powerful cleaning for large spaces, efficiently managing floors, sweeping, mopping, and sanitizing with minimal supervision.

Download Brochure
Talk to an Expert

Accessories

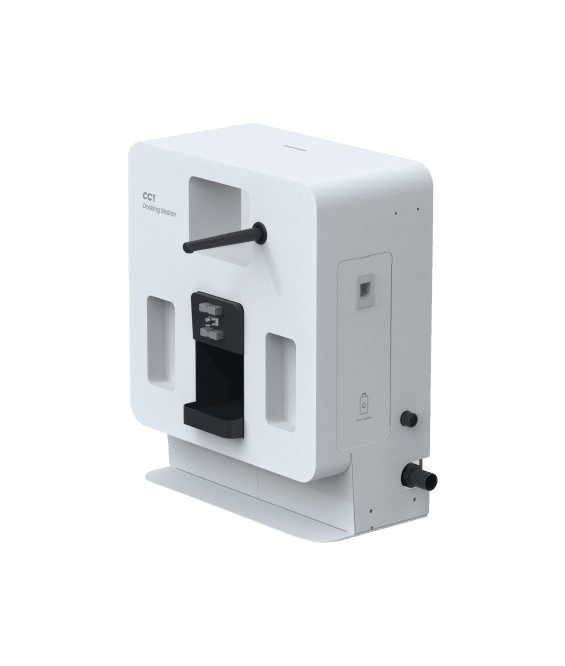

Docking Station

Docking Station

Specifically designed for the PUDU CC1, the Dock Station enables automatic water refilling and charging, ensuring seamless, 24/7 operation without interruption.


Basic specifications
Body dimensions: 404*497*274mm
Body weight: 20kg
Input voltage: 90~264V AC
Output voltage: DC24V
Operating temperature: 0~40℃
Operating humidity: ≤90% (40℃)
Storage temperature: -20℃~70℃
Communication method: Bluetooth
Installation requirements: ground fixed or back fixed against the wall
External dependency: water source, floor drain, power supply

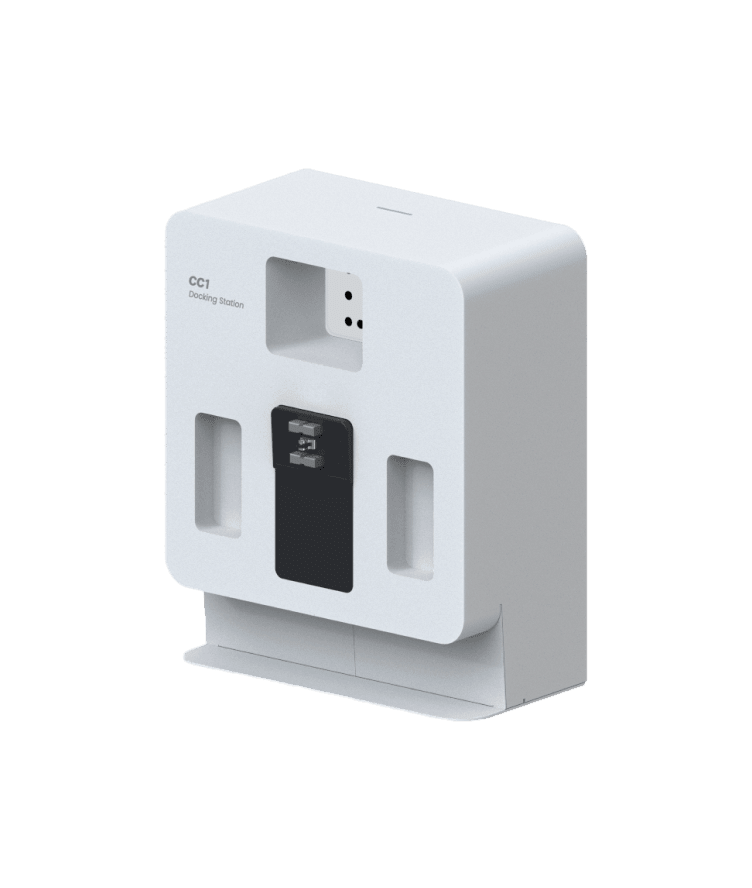

Charging Station

Charging Station

The Charging Station offers a fully automated power solution for robots, removing the need for manual charging and ensuring continuous, hassle-free operation.


Basic specifications
Operating voltage: 100Vac~240Vac 50/60Hz
Power output: 29.4Vdc/8A
Self-weight (Kg): 5.5kg
Dimensions: 390mm x 390mm x 165mm
Noise(dB): Not more than 55dB(A)
Protection level: IP20
Operating temperature: 0° C~40° C
Storage environment: -20° C~60° C

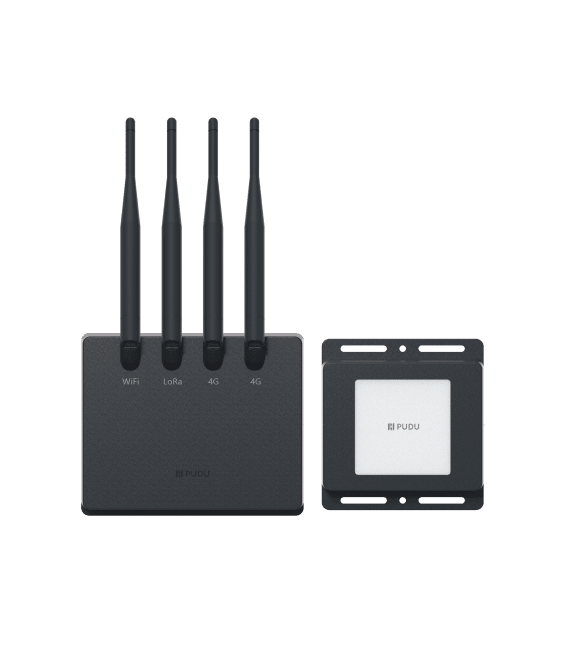

Elevator Control Module

Elevator Control Module

The Elevator Control Main Module is a smart IoT device that enables robots to autonomously operate elevators. Designed with safety and simplicity in mind, it integrates without altering or interfering with the elevator’s internal systems, providing a reliable and non-invasive solution for multi-floor navigation.

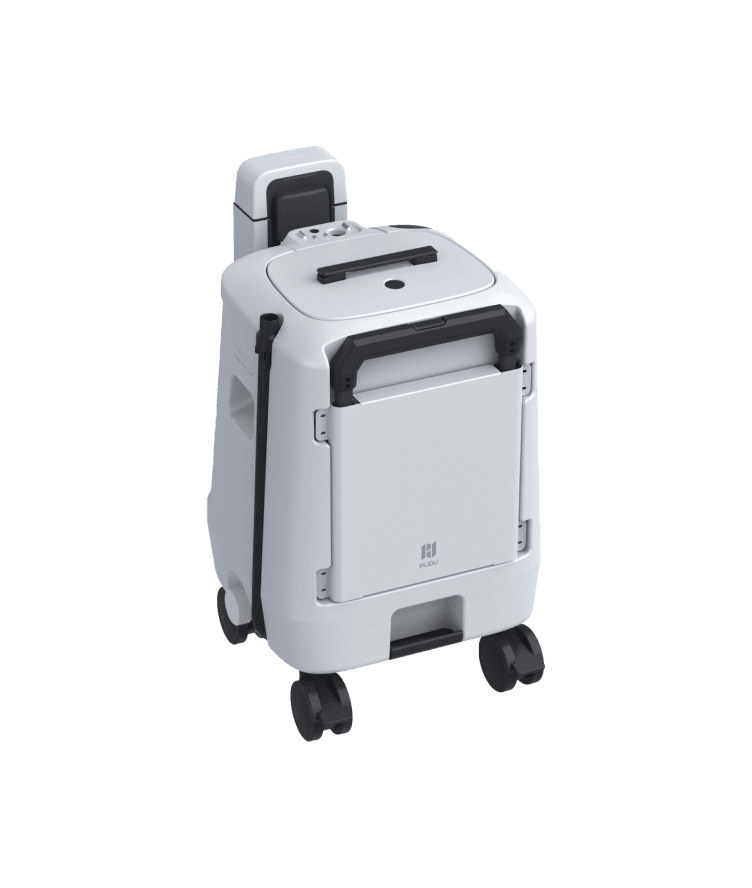

PUDU Mobile Water Station

PUDU Mobile Water Station

Engineered to work seamlessly with a fixed docking station, this system removes the need for any plumbing alterations and allows robots to automatically fill and drain water—streamlining setup and daily operation.


Basic specifications
Dimensions(L,W,H): Base: 262 x 230 x 787 mm; Mobile water tank: 480 x 470 x 740 mm
Weight: Base: 8kg; Mobile water tank: 20kg
Mobile Water Tank Capacity: Clean water tank: 30L; Sewage tank: 30L
Connection Method: Electrical and water connections with the fixed workstation
Input Voltage: 29.2 VDC, 2.5 A
Working Environment: Temperature: 0 to 40°C; Humidity: ≤ 90%RH (40°C)
Storage Temperature: -20℃~60 ℃
Installation Requirements: The base must be fixed to the ground or against a wall

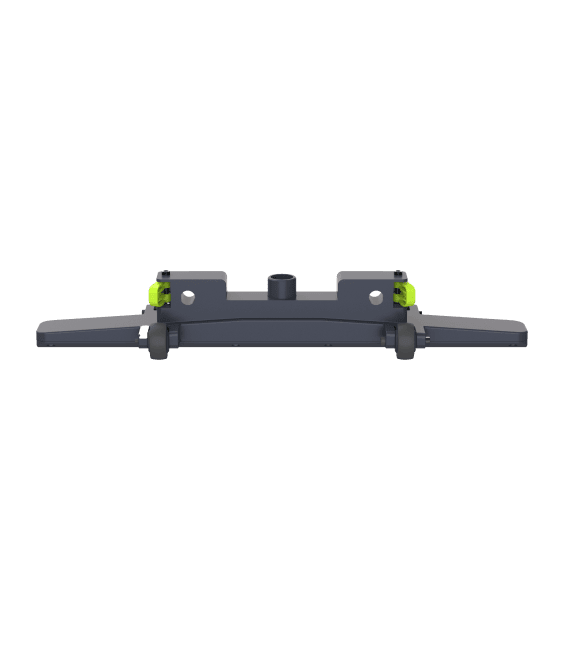

Carpet Vacuuming Assembly

Carpet Vacuuming Assembly

The PUDU CC1’s Carpet Vacuuming Assembly is engineered for optimal performance on a variety of carpets, using a multi-chamber air system for powerful, efficient cleaning.


Basic specifications
Suitable ground: short pile hard carpet
Applicable scenes: Office buildings, office buildings, hotels, etc.
Material: ABS+PC
Width: 51.5 cm (20.27 inches)
